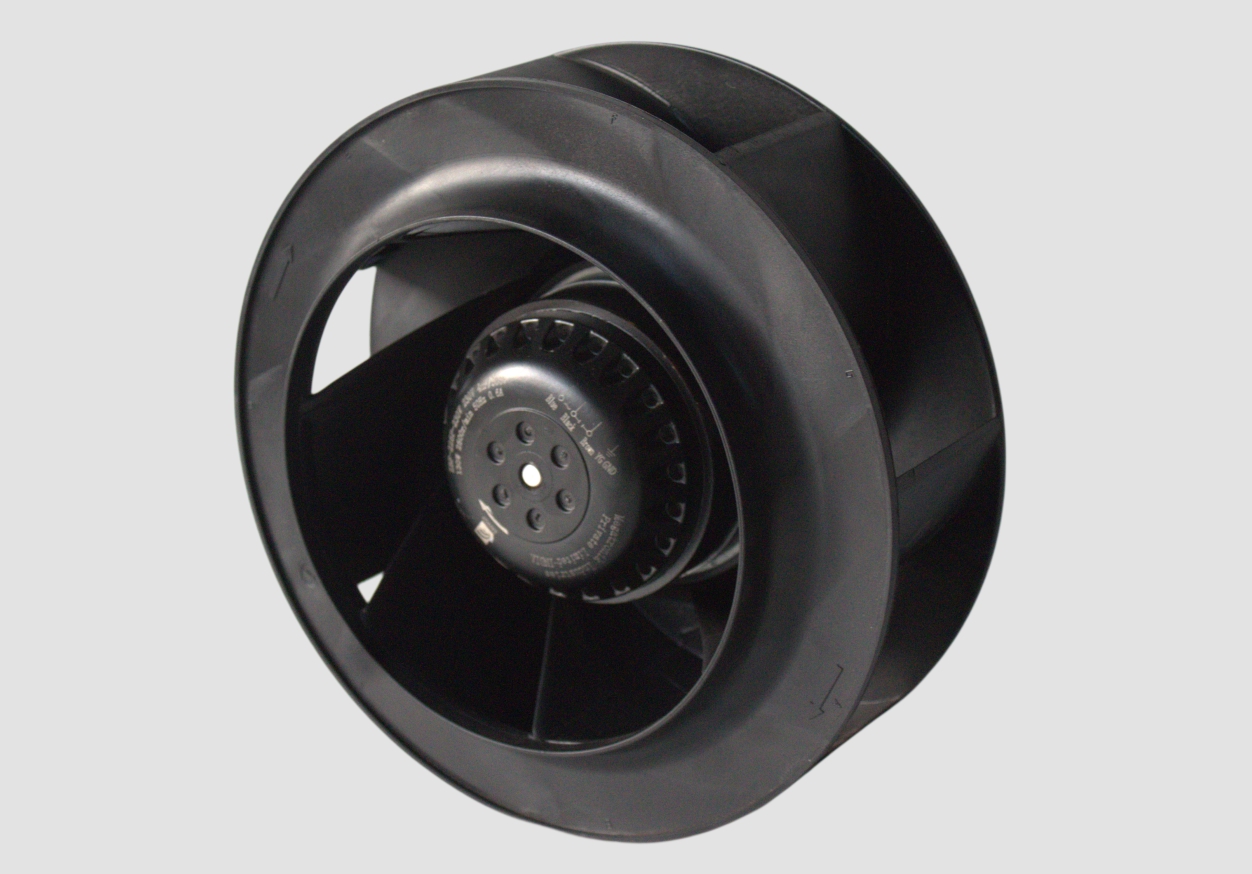

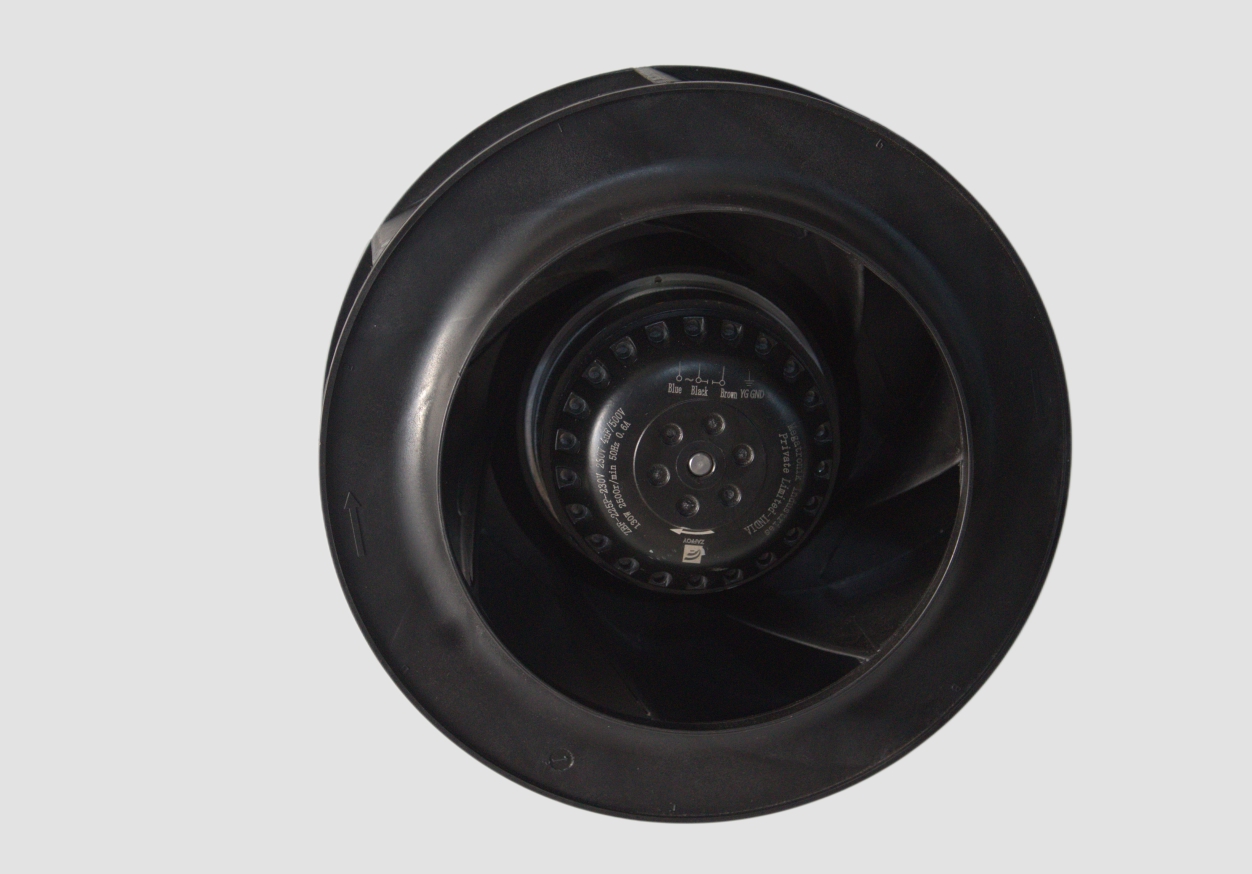

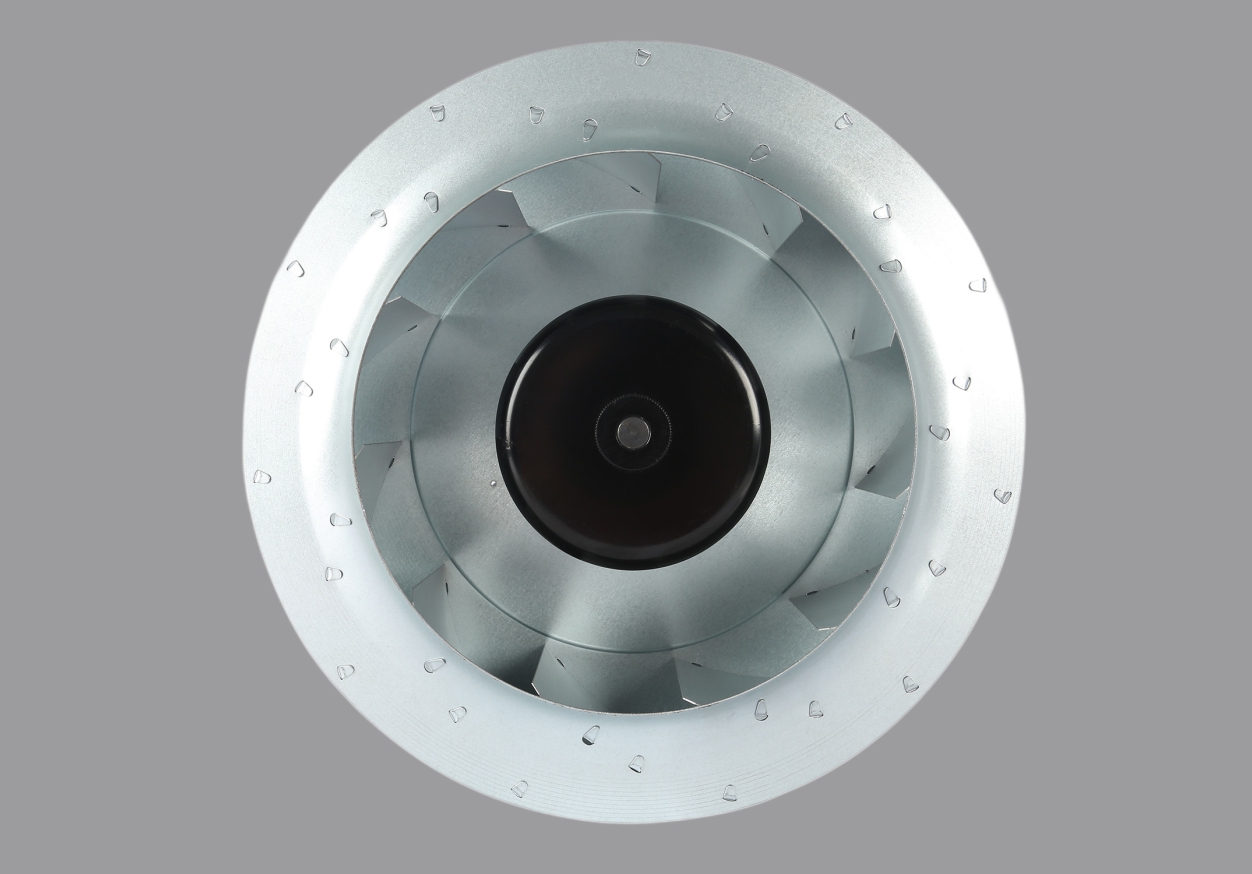

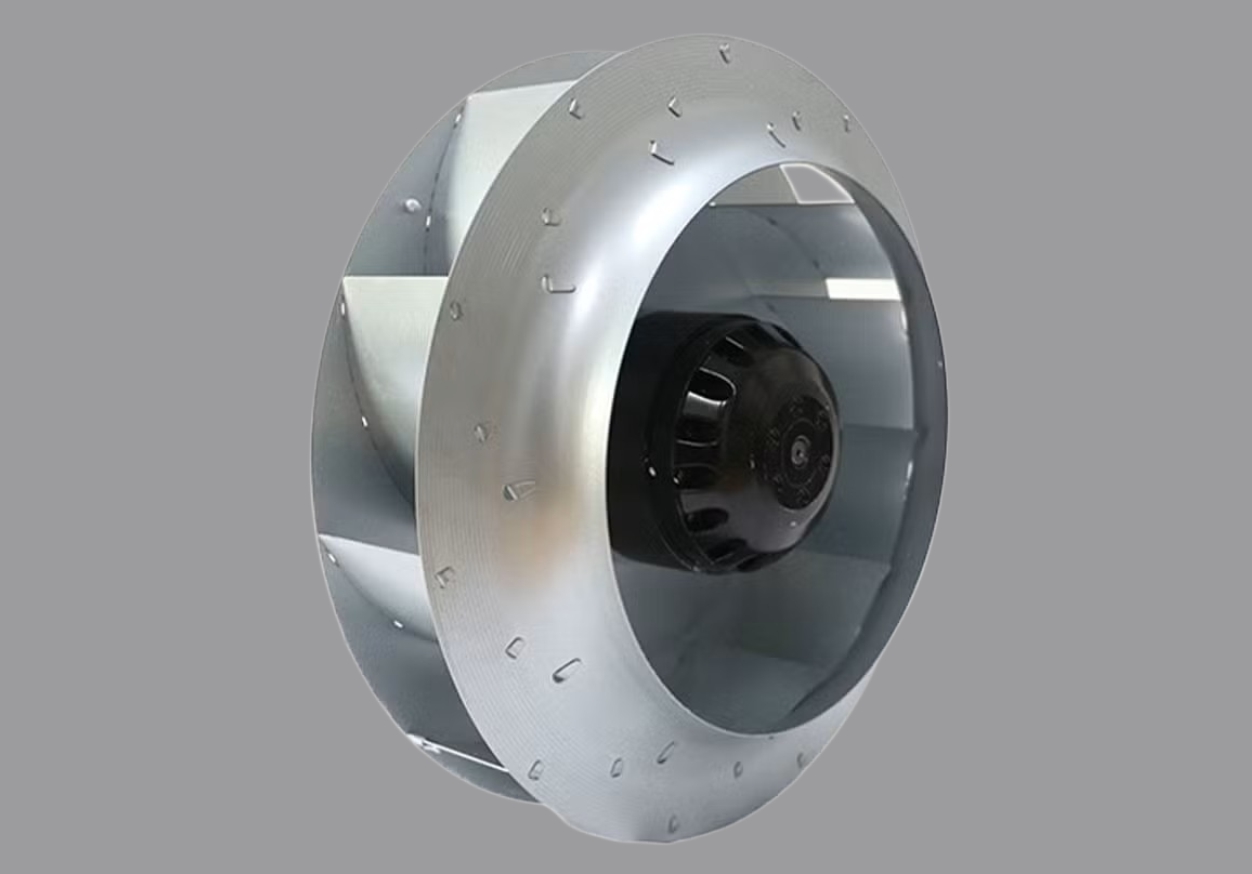

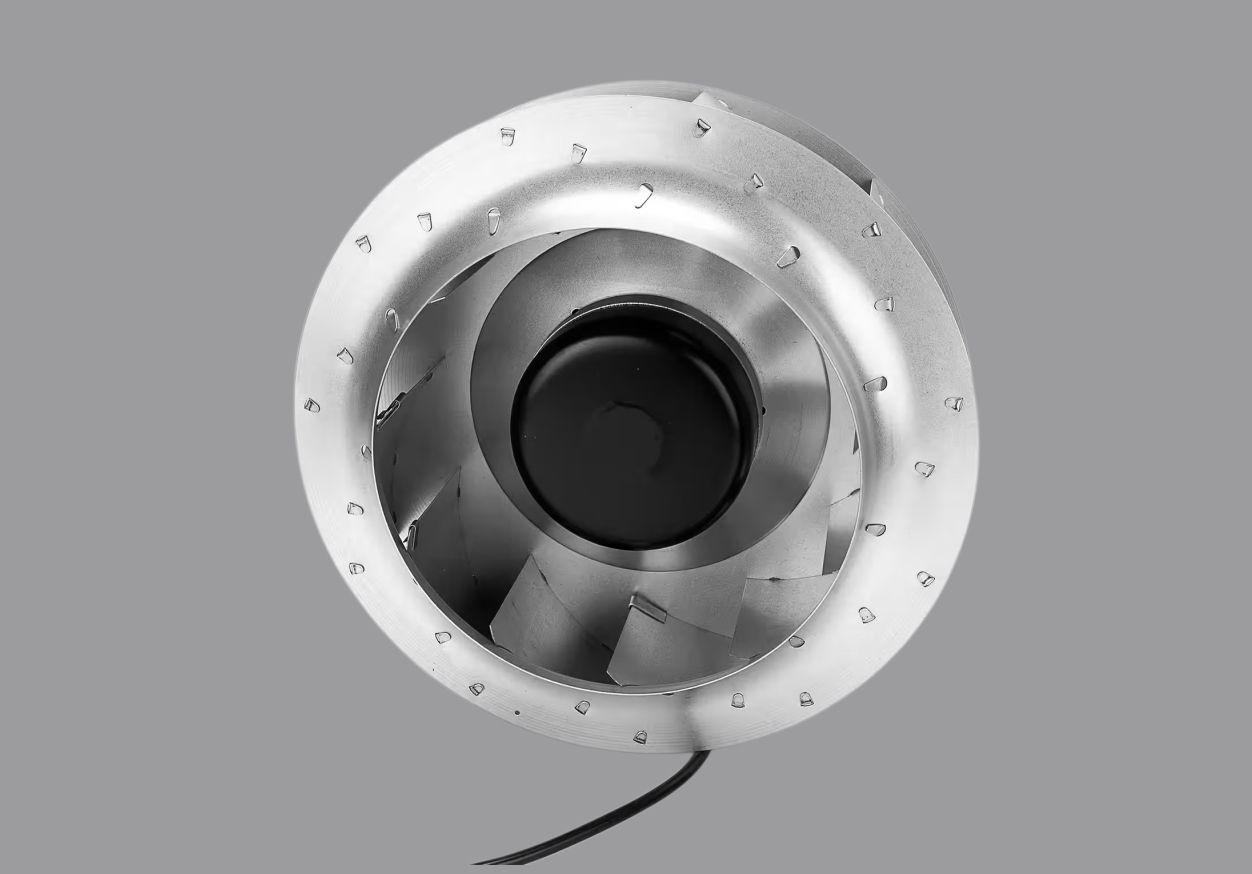

Backward Curved Fan
Backward curved fans are used in compact cooling systems that require higher static pressure and efficient airflow performance. Scraped source descriptions describe this family as suitable for instrumentation panels, UPS systems, condensers, refrigeration equipment, and industrial cooling duties, emphasizing non-overloading impellers, good hydraulic efficiency, and dependable operation under higher pressure conditions.
Features
– Backward curved impeller design supports high static pressure performance in compact equipment layouts.
– Used where efficient cooling and dependable airflow are needed at the inlet side of the system.
– Suitable for electrical panels, UPS systems, condensers, refrigeration equipment, and industrial cooling.
Applications
– Instrumentation and panel cooling
– UPS systems
– Condensers and refrigeration
– Industrial cooling and ventilation
Specifications
Product Type: Backward Curved Fan
Bearing System: Ball
Balancing Grade: G6.3
Ingress Protection: IP54
Blade Material: Plastic Material PA66
Motor Protection: Thermal Protection
Insulation: Level F
Mode Operation: Continuous Operation
Operating Temperature: -30 C to +60 C
Product Life: 40,000 hours (At 40 C)
